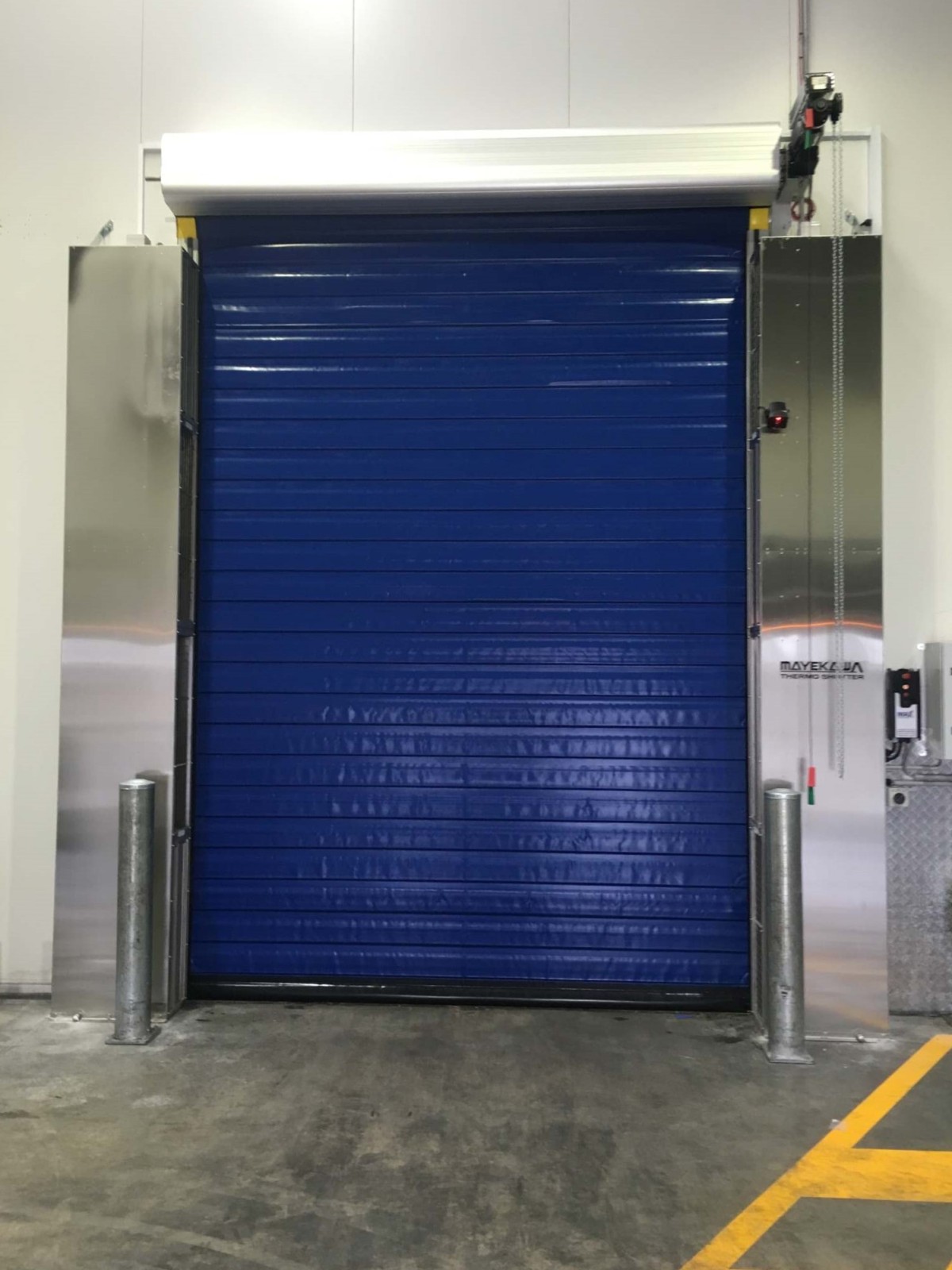

RapidMax® iso-Chill and iso-Freeze
High-performance insulated doors for freezer and chiller applications
The Australian-designed and manufactured RAPIDMAX® iso-Freeze and iso-Chill doors are purpose- built for temperature-controlled environments. Combining insulated ISO-FLEX® curtains, excellent perimeter sealing and German-engineered GfA Safedrive® motors, these doors reduce energy loss, improve environmental control and deliver reliable, high-speed operation.
Key Features
High Speed
Insulated
Thermal
Sensors Safety
Specifications Summary
| Feature | iso-Chill | iso-Freeze |
|---|---|---|
| Application | Chiller environments | Freezer environments |
| Max Width | 3000mm | 3000mm |
| Max Height | 5000mm | 5500mm |
| Opening Speed | Up to 2.5m/sec | Up to 2.5m/sec |
| Curtain | ISO-FLEX® 15 insulated 15mm (std), 30mm (opt) Vision panel (opt) or no vision (std) | ISO-FLEX® 30 insulated 30mm (std) |
| Thermal Insulation | U = 1.12 / R = 0.89 | U = 0.65 / R = 1.54 |
| Door Frame | Powdercoated steel
Full frame heating system (Optional) |
Powdercoated steel
Full frame heating system (Standard) |
| Drive System | GfA Safedrive® Part Number AU110181, IP65, 240V single phase | GfA Safedrive® Part Number Number AU110181, IP54, 240V single phase |
| Control System | GfA TS971-XL IP65 | GfA TS971-XL IP65 |
| Safety | Light curtain (1800mm), integrated brake, emergency stop, manual chain override | Light curtain (1800mm), integrated brake, emergency stop, manual chain override |
| Wind Load Rating | >30km/hr standard; optional Wind tabs system >72km/hr (Class 1, ≤12m²) |
>30km/hr standard |
| Applications | Chiller rooms, food processing, pharmaceuticals | Freezer storage, cold chain logistics, distribution facilities |
