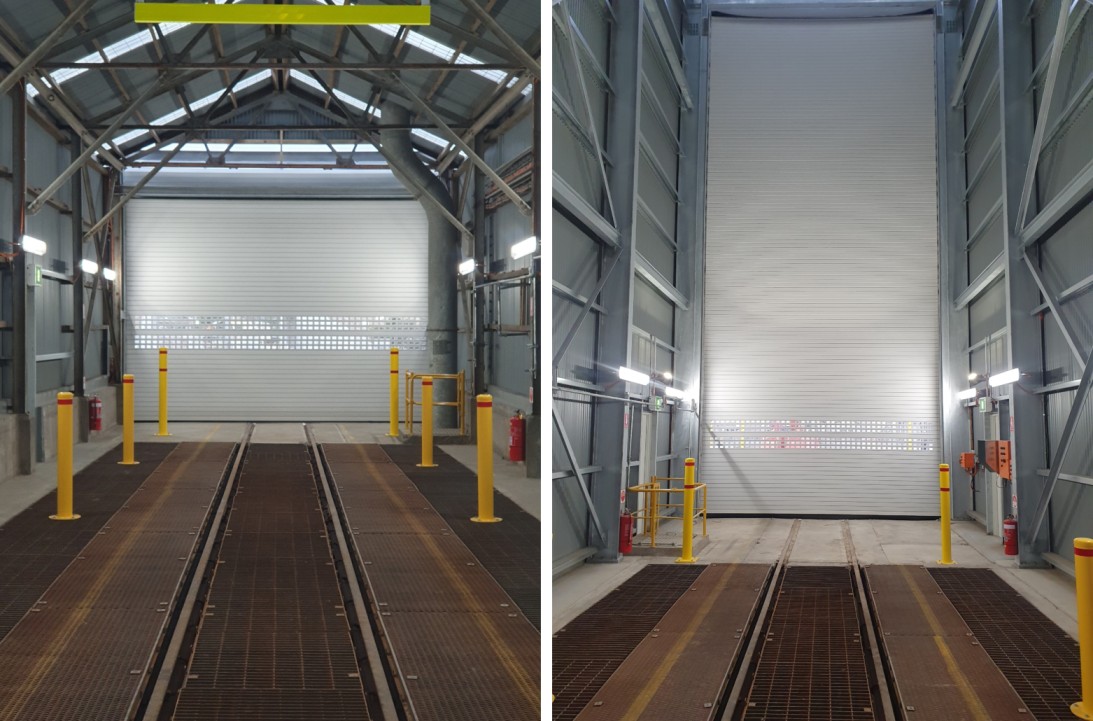

ShutterMax® range: Plus, 95R and 100D

High-performance insulated shutters for security,
thermal and acoustic control

The German-designed and Australian-made ShutterMax® range delivers strong security, insulation and operational efficiency. With advanced slat profiles, GfA Safedrive® drive technology and integrated safety features, ShutterMax® shutters suit industrial and commercial environments requiring thermal regulation, acoustic performance or reliable, high-speed operation.

  • ShutterMax® Plus – balanced performance for general industrial and commercial use
  • ShutterMax® 95R – enhanced thermal and acoustic insulation
  • ShutterMax® 100D – heavy-duty performance for demanding environments
Key Features
High Speed
Insulated
Thermal
Sensors Safety
Specifications Summary
Feature Shuttermax® 95R Shuttermax® 100D Shuttermax® ISO SL
Application External /Internal External /Internal External
Max Width 6,000 mm 11,800 mm 6,000 mm
Max Height 6000mm 6000mm 6,000 mm
Opening Speed up to 0.40m/sec up to 0.25m/sec up to 1.70m/sec
Closing Speed 0.15m/sec 0.15m/sec 0.70m/sec
Curtain / Slats
  • Galvanised steel profile filled with PU foam – Standard
  • Hardened PVC profile end guides
  • Colours available upon request – Optional
  • Window/Ventilation Profiles – Optional
  • Door Head Lintel and Bottom Profile seal – Standard
  • Galvanised steel profile filled with Rockwool – Standard
  • Aluminium profile filled with Rockwool – Optional
  • Hardened PVC profile end guides
  • Colours available upon request – Optional
  • Window/Ventilation Profiles – Optional
  • Door Head Lintel and Bottom Profile seal – Standard
  • Anodised Aluminium external profile bonded to hardened PVC longitudinal profile filled with polyurenthane foam
  • Surfmist (RAL9002) standard
  • Colours available upon request – Optional
  • Window/Ventilation Profiles – Optional
Top Roll Tube Galvanised steel /Springless Drum Galvanised steel /Springless Drum Galvanised steel /Springless Drum
Frame / Guides
  • Galvanised steel – Standard
  • Powdercoated – Optional
  • PVC wear strip – Standard
  • Lintel Rubber seal – Standard
  • PVC wear strip with intergrated seal – Optional
  • Galvanised steel – Standard
  • Powdercoated – Optional
  • PVC wear strip – Standard
  • Lintel Rubber seal – Standard
  • PVC wear strip with intergrated seal – Optional
  • Galvanised steel – Standard
  • Powdercoated – Optional
Drive System GFA Safedrive with intergrated safety brake & manual hauling chain GFA Safedrive with intergrated safety brake & manual hauling chain GFA Safedive with intergrated safety brake & soft start/soft stop
Safety
  • Safedrive intergrated brake – Std
  • Door-line Safety PE Beam – Opt
  • Door-line Safety Light Curtain (1800mm active ) – Opt
  • BottomProfile “Soft -touch” reversing edge – Opt
  • Emergency Stop Button -Std
    Manual Chain Over-ride – Std
  • Safedrive intergrated brake – Std
  • Door-line Safety PE Beam – Opt
  • Manual Chain Over-ride -Std
  • Door-line Safety Light Curtain (1800mm active ) – Optional
  • BottomProfile “Soft -touch” reversing edge – Optional
  • Emergency Stop Button -Standard
  • Safedrive intergrated brake – Standard
  • Door-line Safety Light Curtain (1800mm active ) – Standard
  • BottomProfile “Soft -touch” reversing edge – Optional
  • Emergency Stop Button -Standard
    Manual Chain Over-ride -Standard
Thermal Insulation U= 3.47/R0.29 23mm Profile U=4.4/R=0.23 U=0.875/R=1.14
Acoustic Performance 27dB 31dB 16dB (calculated value-untested)
Wind Load Available:Gusts >700 Pa (Class 3 EU EN 12424)Higher wind loads available upon request Available – Gusts > 1000 Pa (Class 5 EN12424) Higher wind loads available upon request Available:Gusts >700 Pa (Class 3 EU EN 12424) Higher wind loads available upon request
Applications Warehouses, logistics hubs, manufacturing, commercial sites Warehouses, logistics hubs, manufacturing, commercial sites, Auditorium Warehouses, logistics hubs, manufacturing, commercial sites, cold chain logistics
